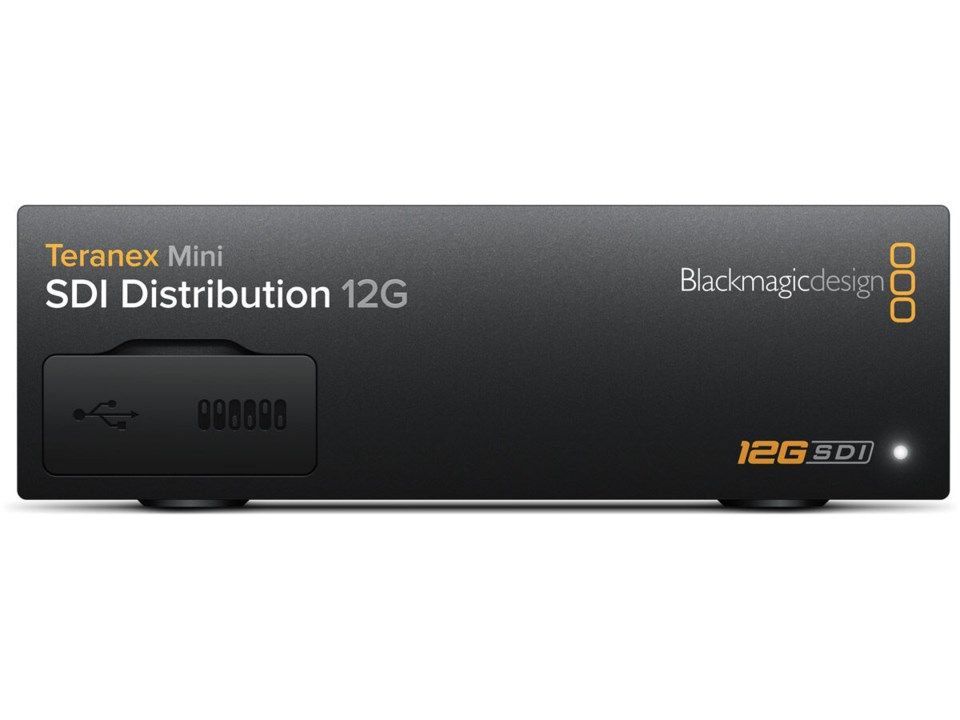

Blackmagic Design Teranex mini - SDI Distribution 12G
Teranex mini - SDI Distribution 12G
Teranex mini - SDI distribution 12G distribuerer et inngående SDI-signal till 12 utgående SDI. Enheten veksler automatiskt mellom SD, HD og UHD opp till 2160/60p.
Tilkoplinger
Inngående:
1 x 12G-SDI SD/HD/2K/3K auto switching
Utgående
8 x 12G-SDI som automatisk matcher SD/HD/2K/4K 12G-SDI input-signalene
Format
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 59.94, 60
1080i50, 59.94, 60
1080PsF23.98, 24
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K Format Support
1080PsF23.98, 24, 125
1080p23.98, 24, 25
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI signaler
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
